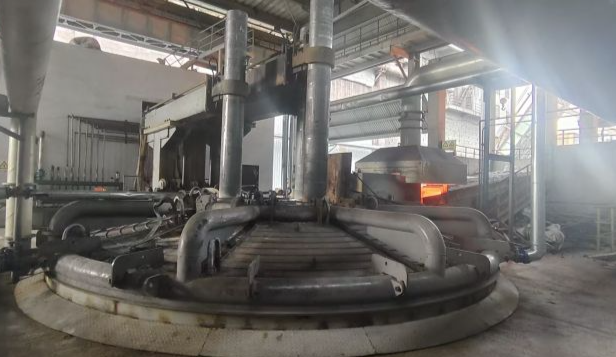

Equipped with a professional thermal insulation structure and electric temperature control system, the furnace body can maintain a stable high-temperature environment, playing a role of thermal buffering. It avoids the rapid temperature drop of slag particles, prevents slag agglomeration and bonding, and ensures the continuity and stability of granulation. Meanwhile, the electric heating component provides auxiliary heat compensation, so that the slag can maintain the appropriate temperature required for granulation and subsequent waste heat recovery, and the waste heat of high-temperature slag can be efficiently captured and converted into available energy such as steam and hot water.

Dry Granulation Module: The core execution unit adopts a precision granulation structure, which can adapt to the physical properties of different types of molten slag, and produce slag particles with uniform particle size, good activity and high utilization value, laying a foundation for the subsequent production of cement admixture, concrete aggregate and other recycled products.

Thermal Insulation Buffer Furnace Body: It uses high-performance refractory and thermal insulation materials, with excellent heat preservation performance and low heat loss. The buffer space inside the furnace can adjust the residence time of slag, balance the fluctuation of slag incoming flow, and match the rhythm of front-end smelting and back-end collection and transportation.

Electric Heating & Temperature Control System: Driven by electric energy, it realizes accurate and stepless adjustment of temperature. Equipped with an automatic control system, it can monitor key parameters such as furnace temperature, granulation speed and slag flow in real time, automatically adjust operating indicators, reduce manual intervention, and improve operation stability.

Closed & Environment-Friendly Structure: The whole equipment is designed with closed sealing, which can effectively control dust emission and avoid secondary pollution. There is no large amount of waste water and waste residue generated in the dry process, which conforms to the national environmental protection and energy conservation standards.

Environmental Friendly: Completely get rid of the dependence of traditional slag treatment on a large amount of water, eliminate the generation of waste water and harmful water vapor, reduce dust and noise pollution, and meet the requirements of clean production.

High Resource Utilization Rate: The dry granulated slag has stable quality and high potential hydraulic activity, which can be widely used in building materials, road construction and other fields, realizing the complete resource utilization of industrial solid waste.

Energy Saving & Waste Heat Recycling: The thermal insulation buffer structure reduces ineffective heat dissipation, and the electric auxiliary heating is precise and controllable. Combined with the matched waste heat recovery device, it can recycle high-quality waste heat, reduce energy consumption of enterprises and improve economic benefits.

Strong Adaptability & High Stability: It can be applied to blast furnace slag, steel slag and other industrial molten slag, with flexible operation, strong anti-interference ability, and can realize continuous and stable operation for a long time.

Intelligent and Automated: With integrated automatic control, it supports data recording and remote monitoring, which is convenient for daily operation and maintenance, and helps enterprises realize intelligent management of slag treatment.

This equipment is mainly used in the metallurgical industry such as iron and steel smelting, as well as the high-temperature slag treatment links in chemical engineering, non-ferrous metal smelting and building materials manufacturing. It is an ideal supporting equipment for industrial enterprises to achieve solid waste reduction, resource utilization and carbon emission reduction.

Technical Parameters of Slag Dry Granulating Thermal Insulation Buffer Electric Furnace

1. Basic Specification Parameters

2. Operating Condition Parameters

3. Electrical & Heating Parameters

4. Granulation & Structural Performance Parameters

5. Auxiliary System Parameters (Matching)

• Waste heat recovery outlet temperature: 550 – 850 °C, suitable for steam generation or hot water production.
• Dust removal efficiency: ≥99.5%, supporting bag filter or wet dust removal system.
• Cooling mode: Natural cooling / forced air cooling for furnace shell, surface temperature ≤60 °C.
